MAGE 10 B-4 Smart Drapery Motor Kit with 4 meter track

Short Description:

*Free-length track could match for different lengths of demands. MAGE 10 B-4 can match all the different length within 4 meters.

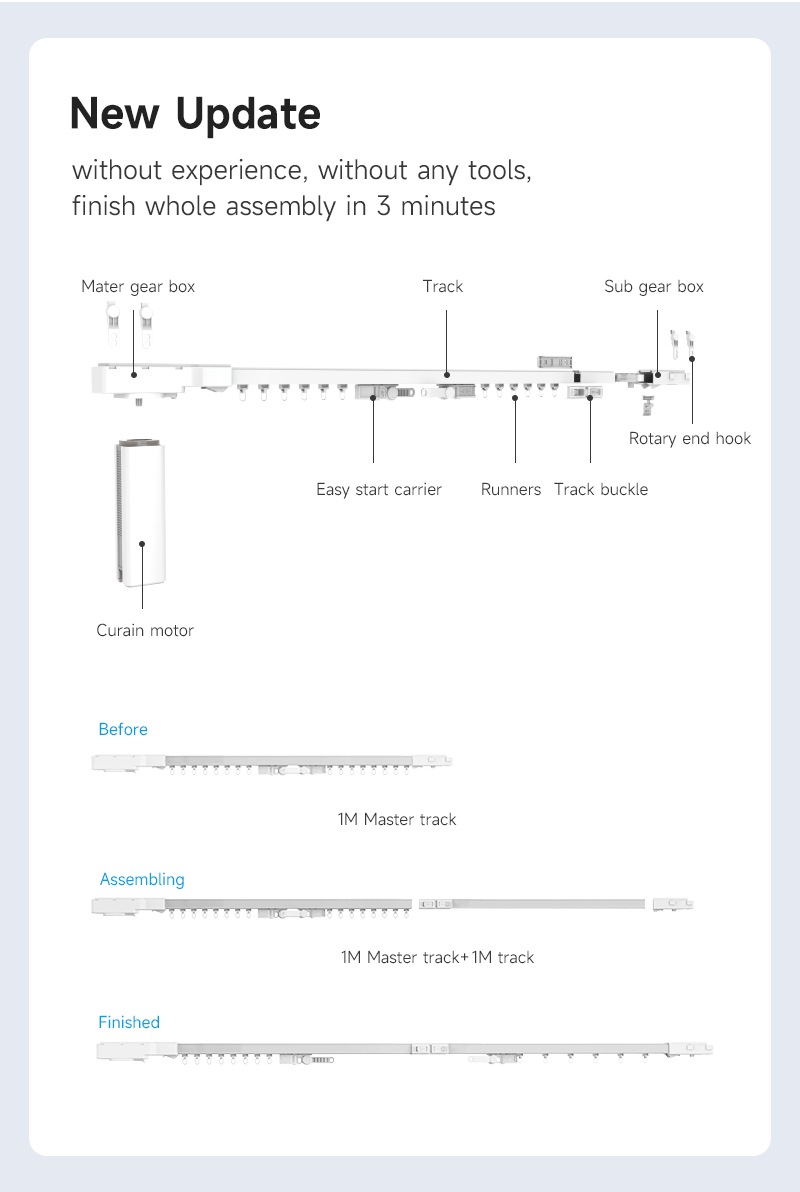

*Track assembling without tooling
*DIY curtain track assembling, save the time and labor cost.

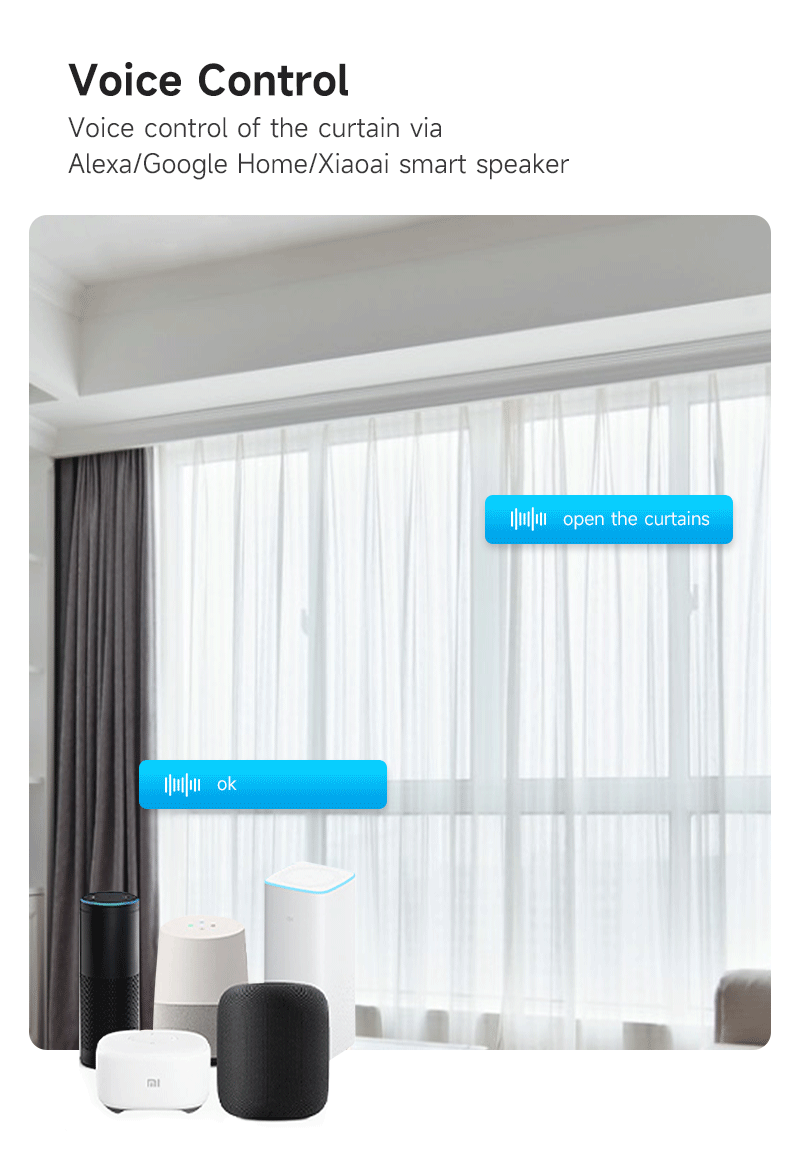

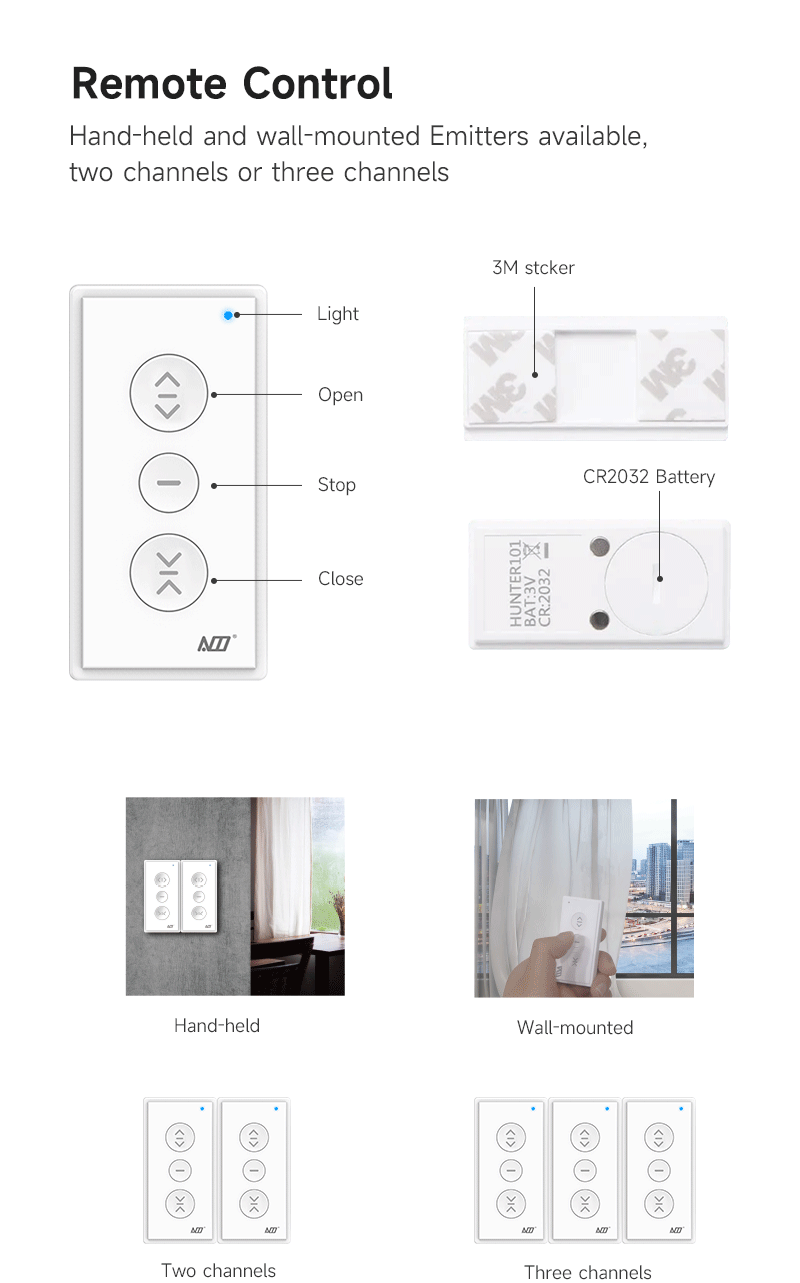

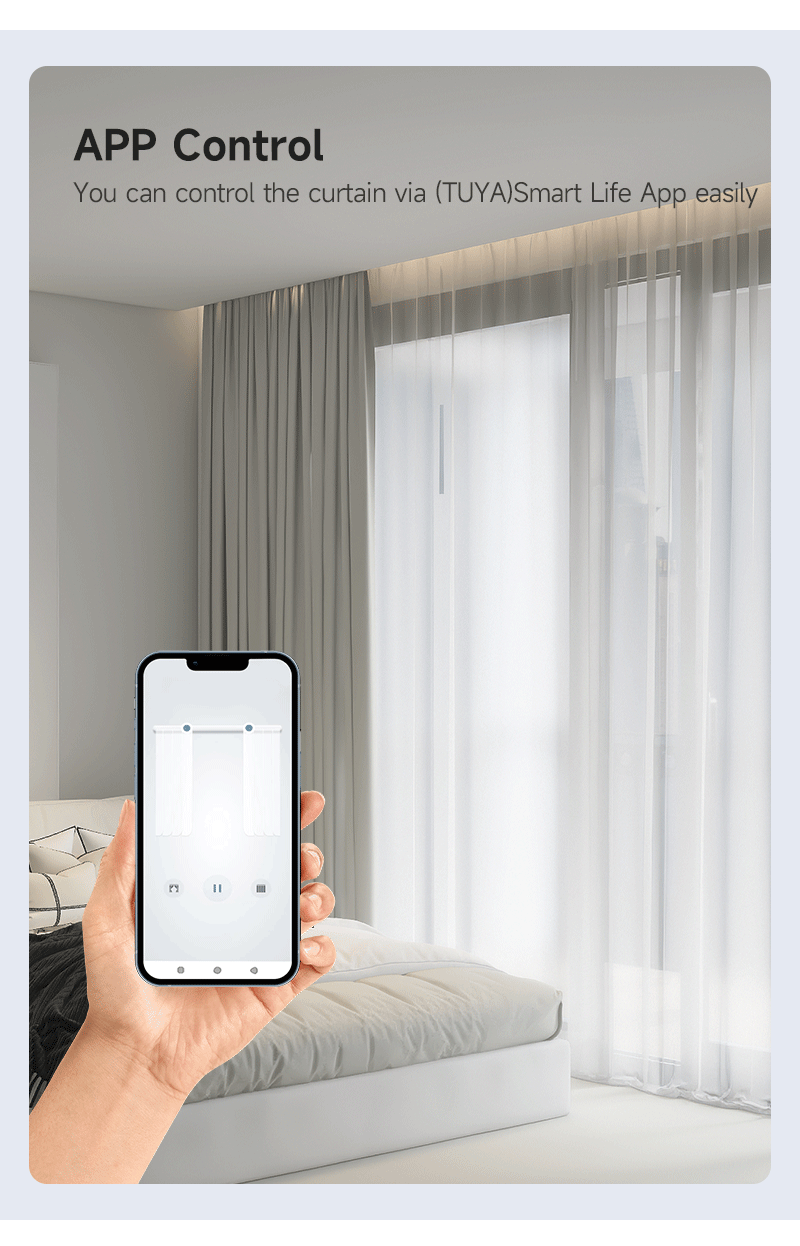

*Different control models: App control, Remote control, Manual pulling, Voice control

Send email to us

Product Detail

Product Tags

Product Details

*MAGE 10 B-4 Smart curtain pack is suitable for the track length less than 4 meters.
*Patent track driving system without traditional belt, which avoid the belt aging and loosen.The driving transit box has already integrated the driving mechanism, so that the design is different than any other items in the market.

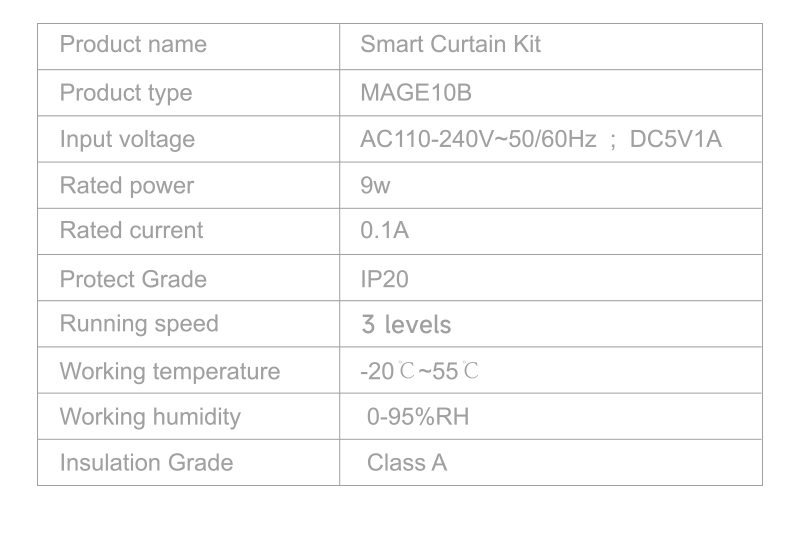

Smart Curtain Motor function

Build-in lithium battery, available by motor control in power failure
Electronic limit, auto limit setting.The first time of motor power on, it will automatic set the limits position.
Obstacle detection function

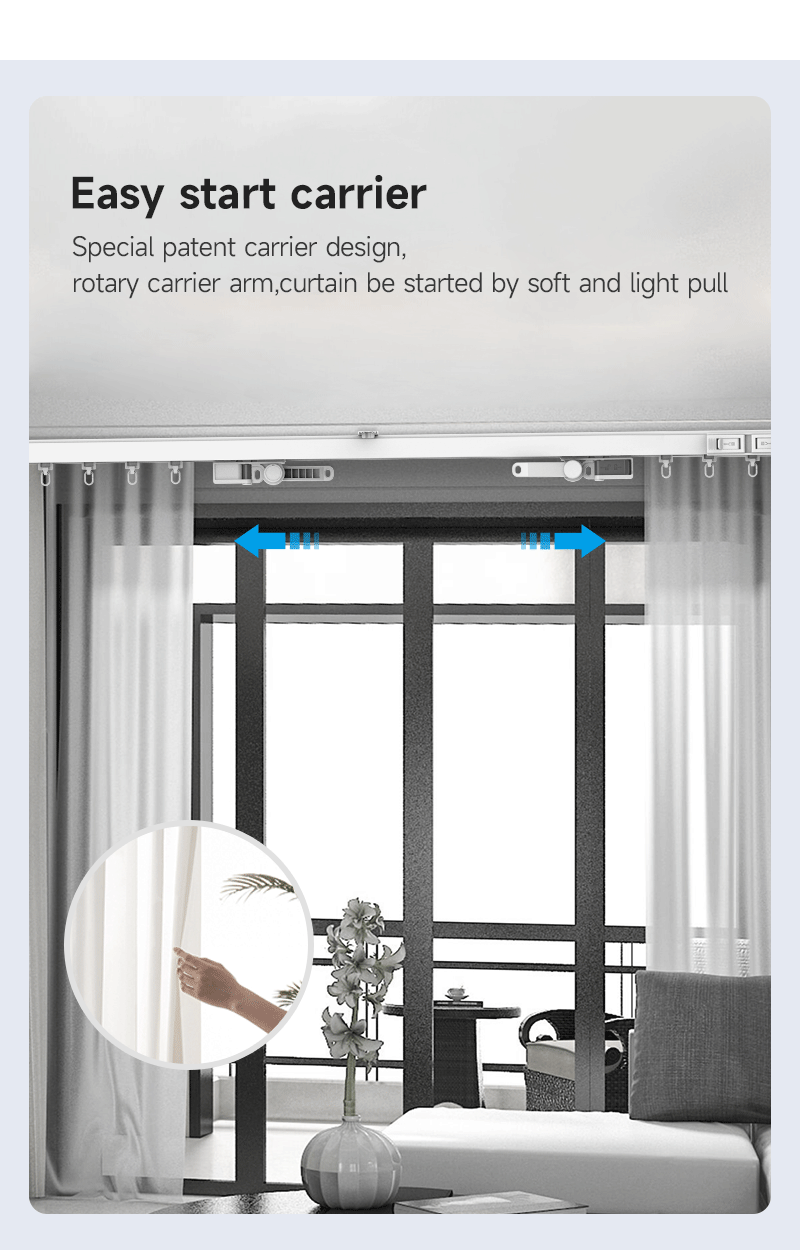

Manual pulling function

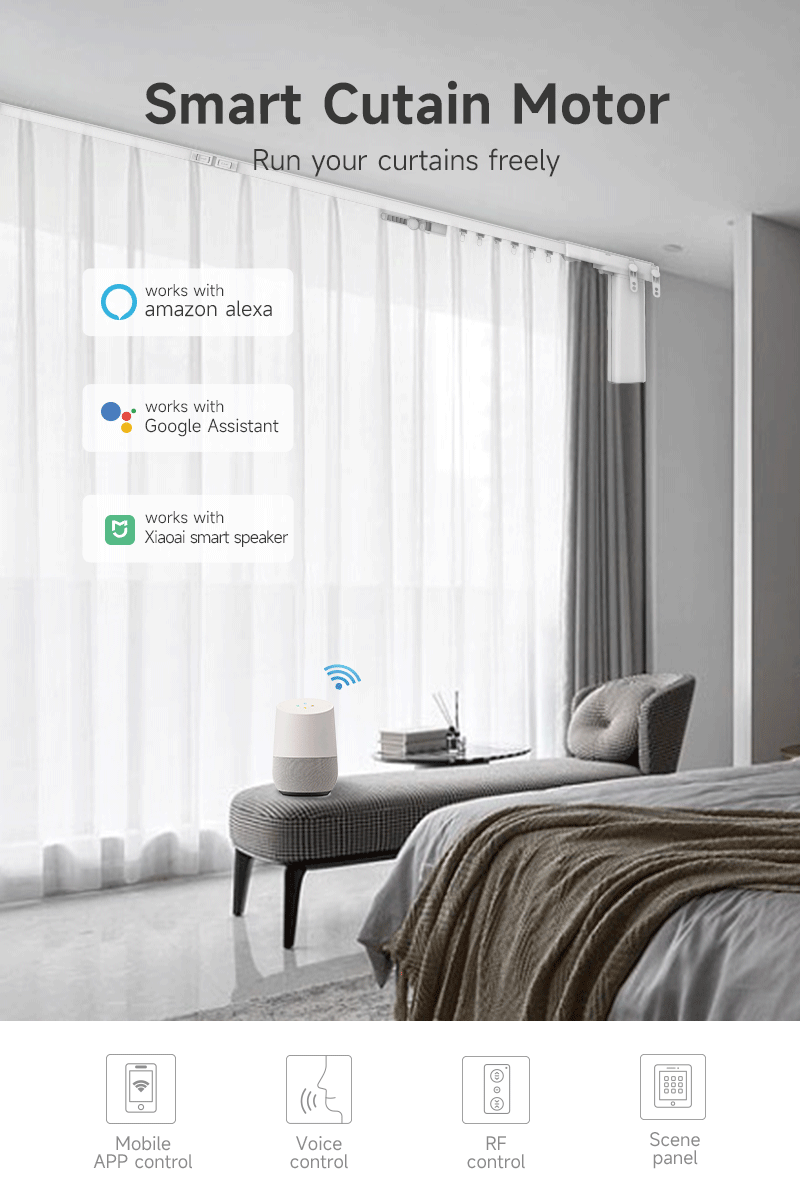

Work with smart home system

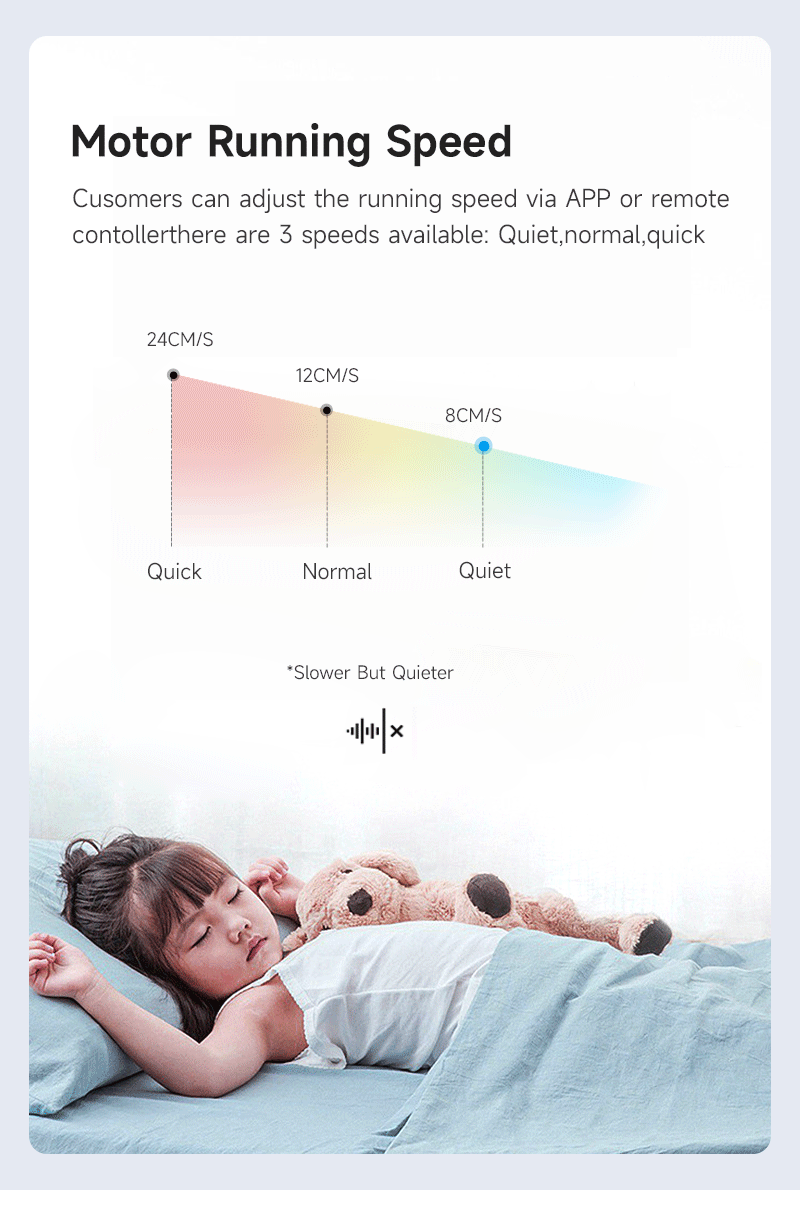

3 speed levels

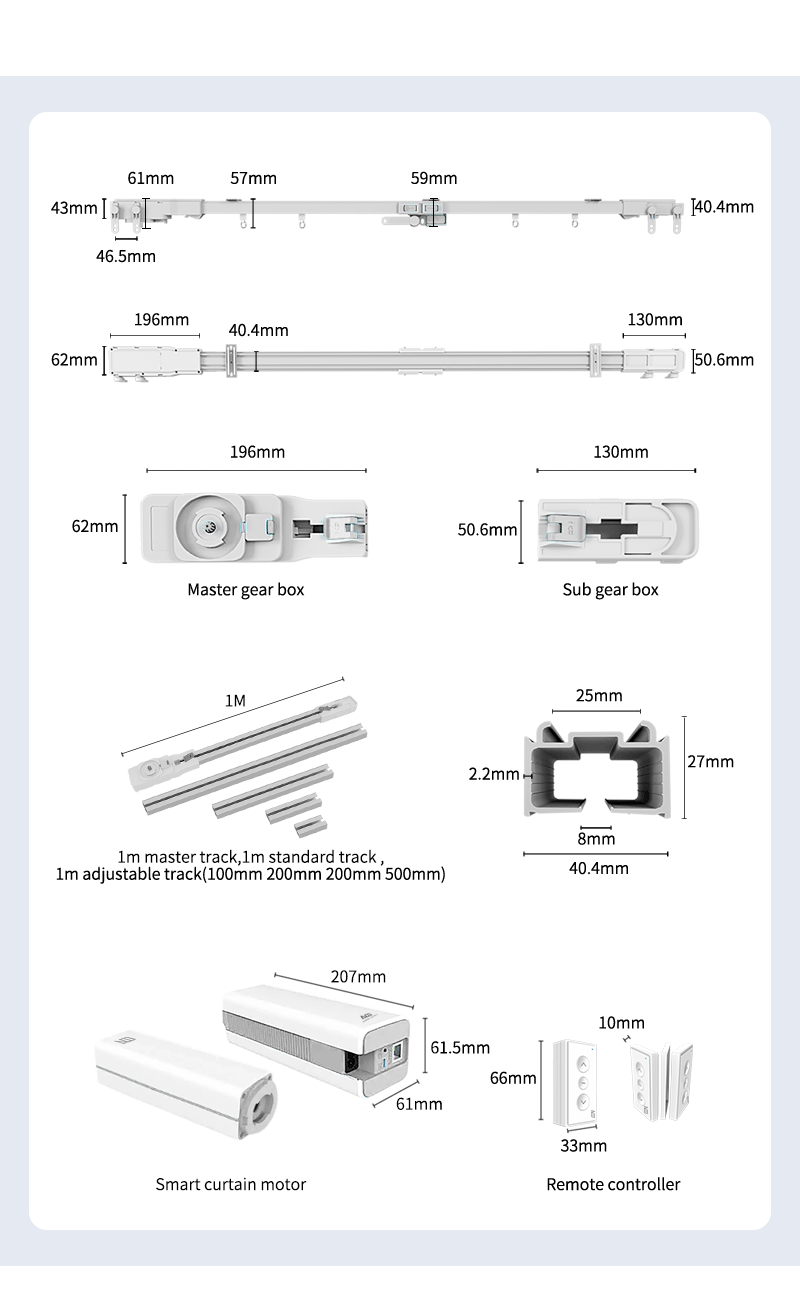

Track Specification

Track width	40.4mm
Track height	27mm
Track thickness	2.2mm
Track weight	600g/m

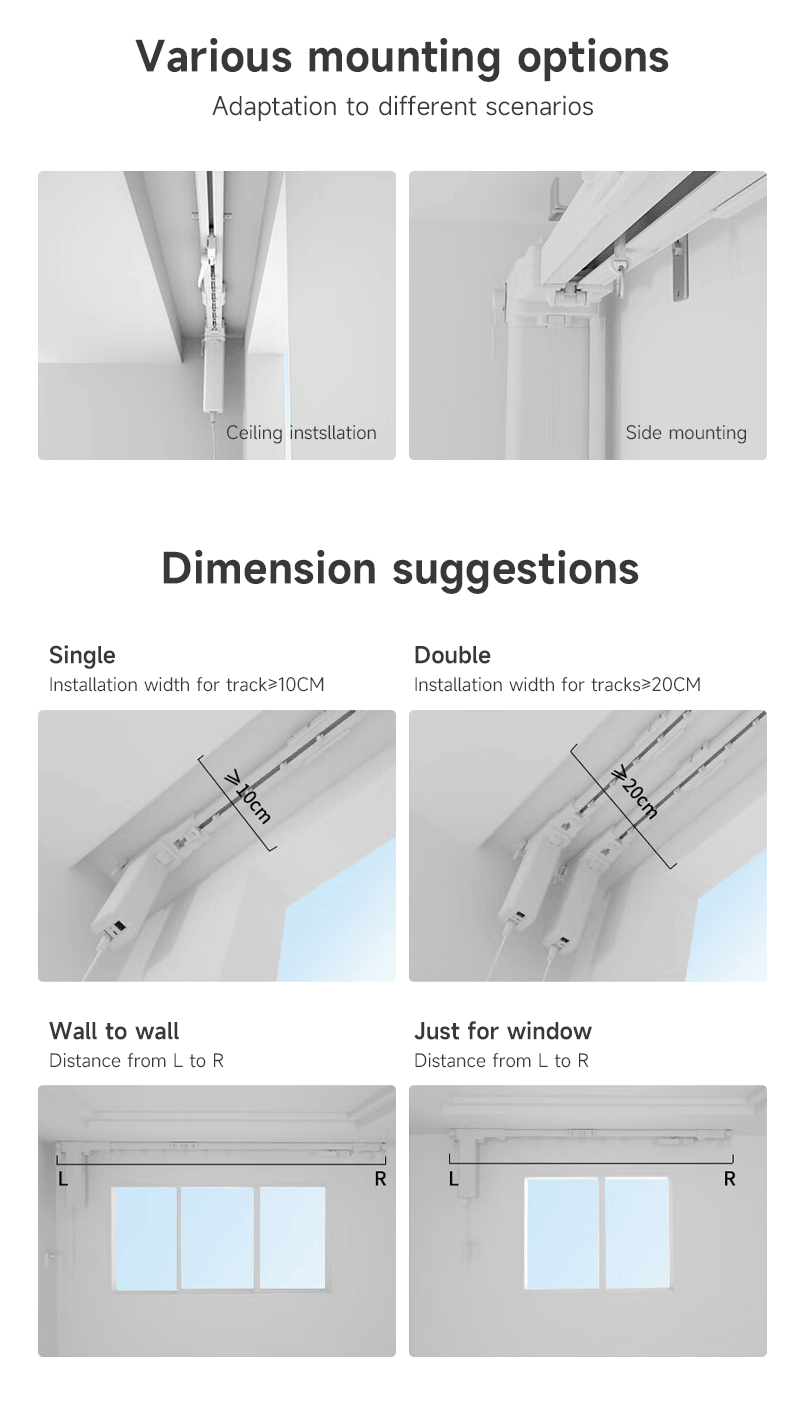

Installation

When end user choose the curtain fabric, should consider the installation size of the curtain track. From the ceiling bracket to the arm hook, the distance is 51mm. It means the final fabric length= equals wall height minus 51mm.

In order to fit the double curtain tracks, we recommend the curtain frame width at 25cm. As a result, the size to the wall will be 31.5mm and the size between the two tracks will be 63mm.
